Manufacturer: TBS

R 758.62
Shipping Weight: 100g
Product Description
The smallest and most powerful (800mW!) video transmitter the world has ever seen! It is race ready with PitMode,
a super-clean and interference free power levels, and connectivity to flight controllers and other means of quickly
changing channels. It runs off a filtered 5V power supply, so it is perfect when being connected to a TBS CORE PRO or TBS PowerCube
New in V3:
Improved Voltage spikes acceptance from 6.5Vmax. on V2 to 13Vmax. on V3
Main features
Smallest, lightest video transmitter on the market
Up to 800mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified
PitMode - Made to race
Zero interference even while powered up, its now a possibility! If youve ever repaired a quad during a race, youll know the
frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum
(way below single digit mWs), and move to frequencies unused by race organizers, to allow you to power up your quad and still see
the image! Youve got a few meters of range to put your quad through its paces before placing it on that starting grid, and in
combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels.
SmartAudio V2 - Full control
SmartAudio technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands,
channels and frequency can be freely controlled. This enables remote channel control directly from a smart device
(TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible
remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your
bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in air,
create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining
and improving race management are now a possibility!
CleanSwitch - Neighbor friendly
CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on,
or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in
flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power
on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly,
and pilot friendly ... that is how we like it at TBS :)
Say NO! to Dipswitches
Even though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much
easier to operate. Gone are the days of video transmitter cards, stepping on peoples channels by mistake, or a mismatch between your
goggle and video transmitter frequencies.
Operating Voltage: 4.5 - 5.5V
Supply current: 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 5g (with SMA, without antenna)

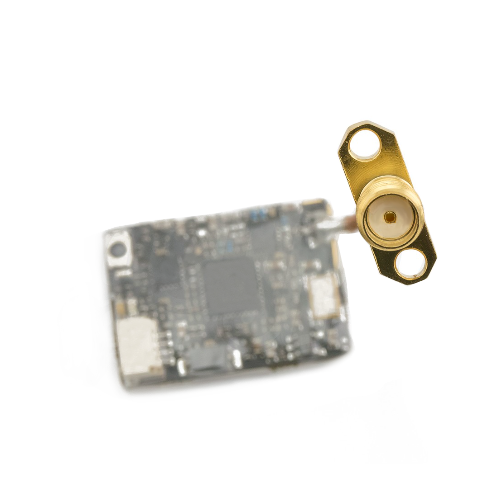

Antenna Connector: SMA Male Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

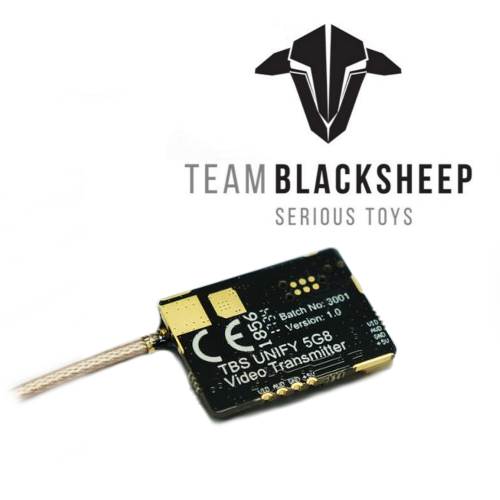

TBS UNIFY 5G8 Video transmitter
5V Video Transmitter pigtail cable
TBS UNIFY Pro Manual
CE Certification
Declaration of Conformity
* HAM license is required for operation on HAM channels, and HAM power levels! The VTx ships with only legal channels enabled,
please consult the manual on unlocking procedure.
